High Precision Rolling – The W12 ensures accurate and consistent plate bending for superior product quality.
Automated Operation – Fully automatic control simplifies the rolling process, reducing manual labor and errors.
Efficient Production – Designed for large-scale applications, it boosts productivity with fast and reliable performance.

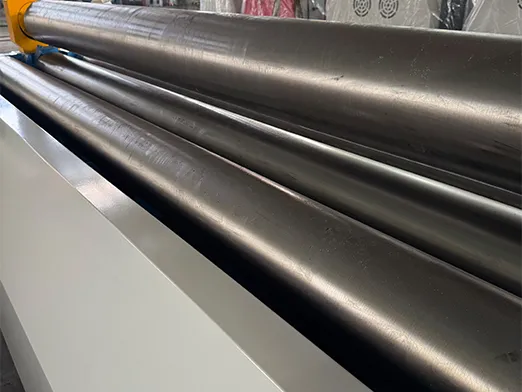

Hardened and Solid Rolls
1. Solid rollers offer superior strength and durability, ensuring stable performance under heavy loads.
2. They resist deformation over time, maintaining high rolling precision and extended service life.

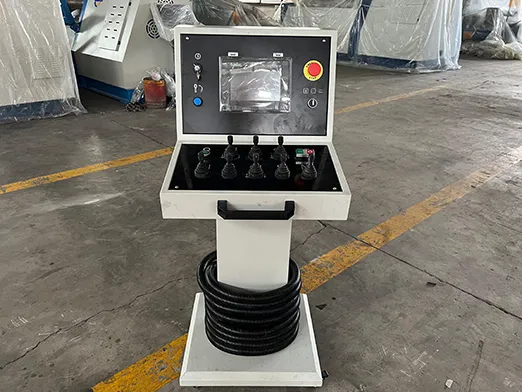

Controller System
The plate rolling machine features an advanced control system with PLC integration, offering automatic calculation and fully automated operation for improved efficiency and ease of use.

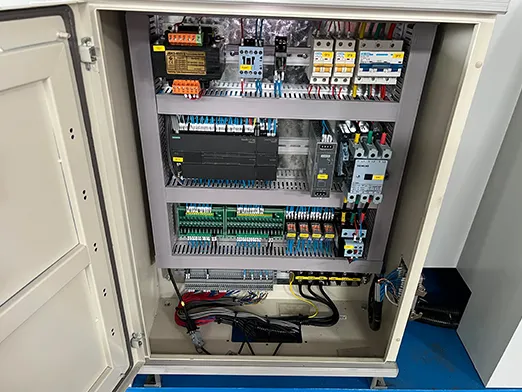

Electric Cabinet
The plate rolling machine is equipped with a Schneider-powered electrical cabinet, ensuring durable, stable, and reliable operation.

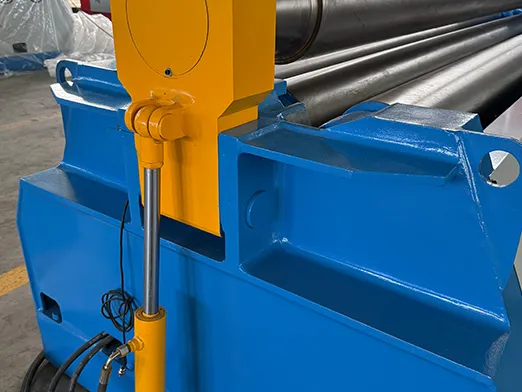

Cone Bending Device
The 4-roller plate rolling machine includes a cone rolling device, enabling precise cone forming with high efficiency and minimal material slippage.

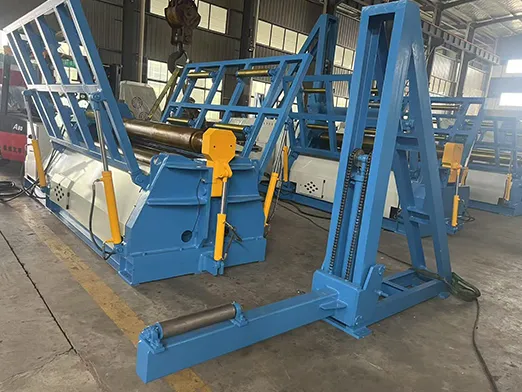

Up&Sides Support
The upper and side supports of the plate rolling machine provide additional stability during rolling, effectively preventing plate deformation and improving forming accuracy.

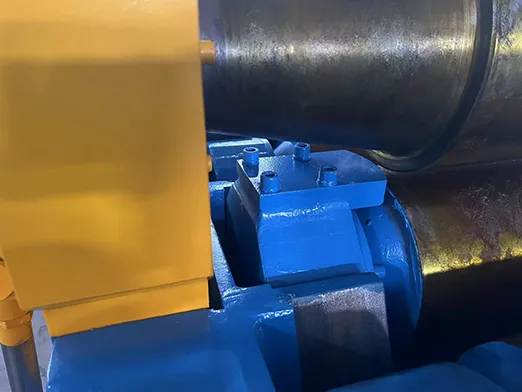

Unloading Device
The tilting device of the plate rolling machine enables the upper roll or bearing frame to pivot open, making it easier to extract the finished workpiece, while reducing manual labor and minimizing the risk of damage or misalignment.

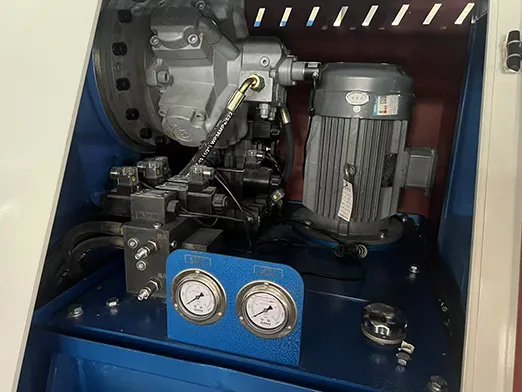

Main Motor
The plate rolling machine is equipped with a Siemens main motor, known for its exceptional stability, durability, and reliable long-term performance.
Technical Specifications
| W12 CNC 4 roller hydraulic rolling machine | ||||||||
| Model | Max.bending thickness | Pre-bending thickness | Max. working length of rolls | Yield limit | Top roller diameter | Bottom roller diameter | Side roller diameter | Main Power |
| mm | mm | mm | Mpa | mm | mm | mm | KW | |
| W12-4x2000 | 4 | 3.5 | 2000 | 245 | 160 | 140 | 120 | 3 |
| W12-6x2000 | 6 | 5 | 2000 | 245 | 190 | 170 | 150 | 4 |
| W12-8x2000 | 8 | 6.5 | 2000 | 245 | 210 | 190 | 170 | 5.5 |
| W12-10x2000 | 10 | 8 | 2000 | 245 | 230 | 210 | 190 | 7.5 |
| W12-12x2000 | 12 | 10 | 2000 | 245 | 270 | 250 | 210 | 11 |
| W12-16x2000 | 16 | 13 | 2000 | 245 | 300 | 270 | 220 | 11 |
| W12-20x2000 | 20 | 16 | 2000 | 245 | 330 | 300 | 240 | 11 |
| W12-25x2000 | 25 | 20 | 2000 | 245 | 360 | 330 | 250 | 15 |
| W12-30x2000 | 30 | 25 | 2000 | 245 | 390 | 360 | 300 | 18.5 |
| W12-35x2000 | 35 | 28 | 2000 | 245 | 430 | 390 | 330 | 22 |
| W12-40x2000 | 40 | 32 | 2000 | 245 | 460 | 420 | 360 | 30 |
| W12-45x2000 | 45 | 36 | 2000 | 245 | 510 | 460 | 390 | 37 |
| W12-50x2000 | 50 | 40 | 2000 | 245 | 550 | 510 | 420 | 45 |
| W12-4x2500 | 4 | 3.5 | 2500 | 245 | 190 | 170 | 150 | 4 |
| W12-6x2500 | 6 | 5 | 2500 | 245 | 210 | 190 | 170 | 5.5 |
| W12-8x2500 | 8 | 6.5 | 2500 | 245 | 230 | 210 | 190 | 7.5 |
| W12-10x2500 | 10 | 8 | 2500 | 245 | 270 | 250 | 210 | 11 |
| W12-12x2500 | 12 | 10 | 2500 | 245 | 300 | 270 | 220 | 11 |
| W12-16x2500 | 16 | 13 | 2500 | 245 | 330 | 300 | 240 | 11 |
| W12-20x2500 | 20 | 16 | 2500 | 245 | 360 | 330 | 250 | 15 |
| W12-25x2500 | 25 | 20 | 2500 | 245 | 390 | 360 | 300 | 18.5 |
| W12-30x2500 | 30 | 25 | 2500 | 245 | 430 | 390 | 330 | 22 |
| W12-35x2500 | 35 | 28 | 2500 | 245 | 460 | 420 | 360 | 30 |
| W12-40x2500 | 40 | 32 | 2500 | 245 | 510 | 460 | 390 | 37 |
| W12-45x2500 | 45 | 36 | 2500 | 245 | 550 | 510 | 420 | 45 |
| W12-50x2500 | 50 | 40 | 2500 | 245 | 610 | 560 | 450 | 55 |
| W12-4x3000 | 4 | 3.5 | 3000 | 245 | 210 | 190 | 170 | 5.5 |
| W12-6x3000 | 6 | 5 | 3000 | 245 | 230 | 210 | 190 | 7.5 |
| W12-8x3000 | 8 | 6.5 | 3000 | 245 | 270 | 250 | 210 | 11 |
| W12-10x3000 | 10 | 8 | 3000 | 245 | 300 | 270 | 220 | 11 |
| W12-12x3000 | 12 | 10 | 3000 | 245 | 330 | 300 | 240 | 11 |
| W12-16x3000 | 16 | 13 | 3000 | 245 | 360 | 330 | 250 | 15 |
| W12-20x3000 | 20 | 16 | 3000 | 245 | 390 | 360 | 300 | 18.5 |
| W12-25x3000 | 25 | 20 | 3000 | 245 | 430 | 390 | 330 | 22 |
| W12-30x3000 | 30 | 25 | 3000 | 245 | 460 | 420 | 360 | 30 |
| W12-35x3000 | 35 | 28 | 3000 | 245 | 510 | 460 | 390 | 37 |
| W12-40x3000 | 40 | 32 | 3000 | 245 | 550 | 510 | 420 | 45 |
| W12-45x3000 | 45 | 36 | 3000 | 245 | 610 | 560 | 480 | 55 |
| W12-50x3000 | 50 | 40 | 3000 | 245 | 670 | 620 | 520 | 75 |
