CNC Press Brake

High Precision: Utilizing servo-hydraulic systems and CNC controls, these machines achieve bending tolerances as tight as ±0.01mm, ensuring consistent and accurate results.
Enhanced Efficiency: With programmable automation, they streamline complex bending tasks, reducing setup times and increasing production throughput.
Versatility: Capable of handling various materials and thicknesses, they accommodate diverse applications across industries like automotive, aerospace, and sheet metal fabrication.

Request a Quote

Introduction

A CNC Press Brake is an advanced sheet metal bending machine controlled by a computer numerical control system. It uses programmed parameters to control bending operations, including bending angle, position accuracy, and repeated production processes.

Compared with conventional press brakes, CNC Press Brake machines provide higher accuracy, better repeatability, and improved efficiency for complex sheet metal fabrication.

Advantages of BOST CNC Press Brake Machine

High Precision Bending Performance

•CNC control system

•Accurate positioning

•Stable bending angle

•Repeatable production

Flexible Configuration Options

•Different tonnage options

•Working length customization

•Multi-axis back gauge

•Tooling options

Efficient Sheet Metal Production

•Reduced setup time

•Improved productivity

•Suitable for complex bending tasks

CNC Press Brake Applications

Industry	Typical Components	Recommended Reason
Automotive	Chassis parts, brackets, body panels	High precision bending
Electrical Industry	Control cabinets, enclosures	Repeatable production
Elevator Manufacturing	Door panels, cabins	Accurate angle control
Construction	Steel structures, panels	Large plate bending
Machinery Manufacturing	Frames and covers	Flexible production

Request a Quote

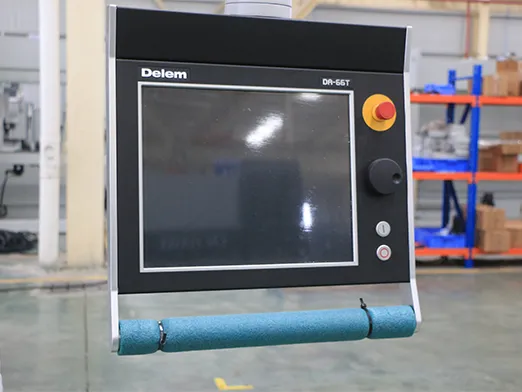

CNC Controller

The controllers are sourced from European countries—Delem from the Netherlands, ESA from Italy, and Cybelec from Switzerland—ensuring quality and reliability.
Algorithms are advanced enough to optimize bending cycles and decrease setup times, thus boosting productivity, especially during batch processing tasks.
(Options: DELEM DA53T, DA58T, DA66T, DA69T, ESA s630 ,CYBELECK CT12,CT15 etc.)

Request a Quote
Hydraulic System

1.The Hybrid system represents a cutting-edge servo drive solution for press brakes. Leveraging a brushless motor, this technology enables precise ram movement control while minimizing both oil usage and energy consumption.
Lower Energy Consumption
Clearly Reduced Cooling Effort
Higher Operation Speeds
Remarkable Noise Reduction
More Than 30% Oil Save
2.Rexroth hydraulic valves offer exceptional durability and high-pressure resistance, ensuring reliable performance under demanding conditions.
The machines equipped with these valves support multiple actions, such as rapid and slow descent, working speed bending, rapid return, and an emergency stop feature for enhanced operational flexibility and safety.

Request a Quote

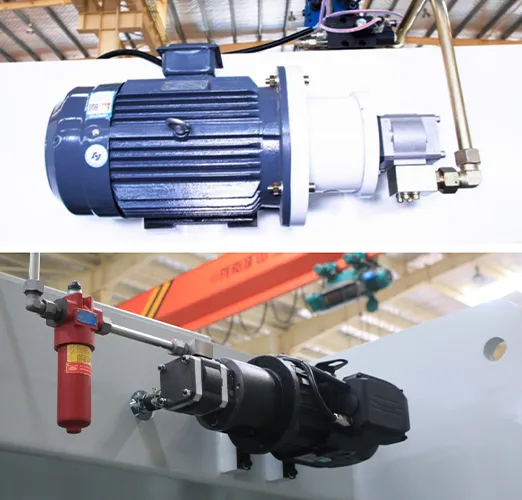

Motor

1. Siemens motors from Germany stand out due to their high efficiency and energy-saving features, directly contributing to reduced operational costs.
Designed with large starting torque and adherence to IEC standards, these motors ensure compatibility and ease of maintenance across various applications.
They offer excellent performance with low noise and vibration, alongside exceptional reliability, enhancing user experience and system longevity.
2. Additionally, we offer servo motors tailored to customer requirements. Servo motor technology has become the mainstream choice for achieving high dynamic performance and improving machine productivity, while also reducing energy consumption. Compared to traditional motors, servo motors can reduce energy usage by up to 30%, providing customers with greater efficiency and lower operating costs.

Request a Quote

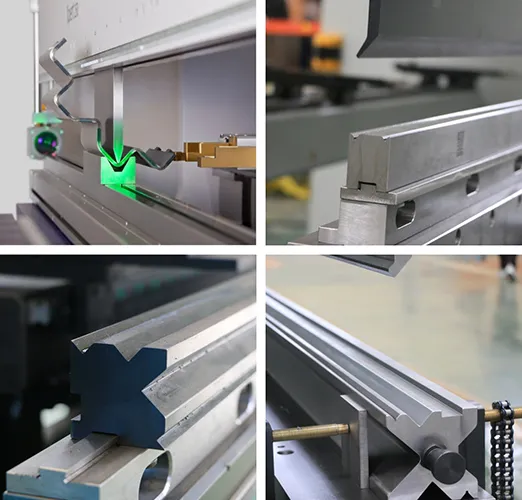

Punches & Dies

We offer a wide range of press brake dies and custom die designs to meet specific
product requirements. By selecting the most suitable tooling, we aim to ensure the
highest precision and quality in the finished workpieces.

Request a Quote

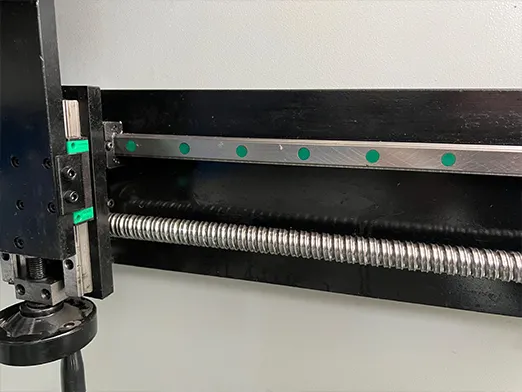

Ball Screw & Guide

This section uses a ball screw and linear guide rail system to ensure smoother operation, higher precision, and greater wear resistance.

Request a Quote

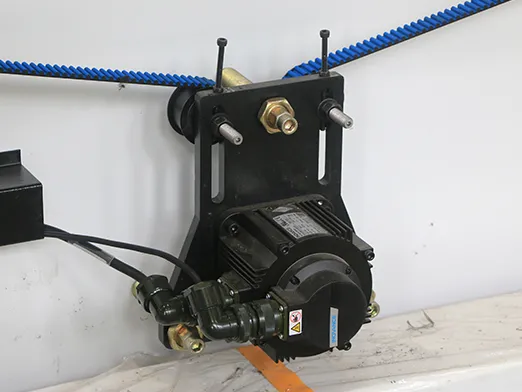

Servo Motor

A servo motor's precision control enables exact positioning and movement, crucial for applications requiring fine adjustments and repeatability.
The Estun servo drive is engineered for precision, enhancing the accuracy of mechanical operations in industrial applications.

Request a Quote

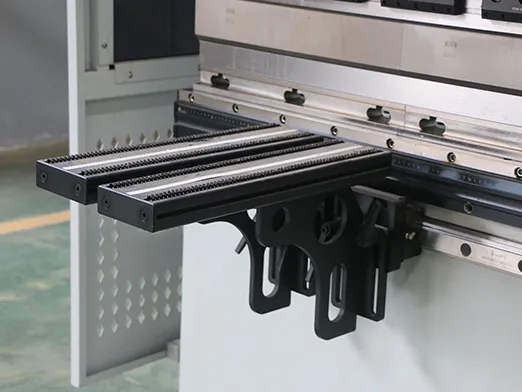

Front Supporter

Front supporter with features of simple structure ,powerful functions ,can be adjusted up and down , or moved along the workbench in rightwards and leftwards

Request a Quote

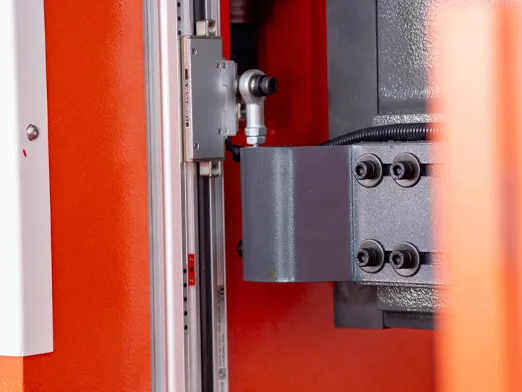

Spain FAGOR Grating Ruler

Spain FAGOR Grating Ruler Slider position signal is feedback to controller by Spain FAGOR Grating ruler, then the CNC Controller adjusts the amount of fuel tank by changing the synchronous valve opening size hereby controlling the slider ( Y1,Y2)running on the same frequency ,maintaining the parallel state of the worktable

Request a Quote

Technical Specifications

For more detailed specifications, please don't hesitate to contact us.

CNC Press Brake Machine Solutions

Type	Features	Recommended Application
Hydraulic CNC Press Brake	High bending force, stable operation, suitable for heavy plates	Heavy fabrication, machinery parts
Electric CNC Press Brake	High precision, energy saving, fast response	Precision sheet metal production
Tandem CNC Press Brake	Extended bending length, synchronized operation	Long steel structures, large panels
Automated CNC Press Brake	Robot integration and automatic loading	Mass production

CNC Press Brake vs NC Press Brake: What Is the Difference?

Comparison	CNC Press Brake	NC Press Brake
Control System	Computer Numerical Control	Numerical Control
Programming	Advanced programming	Basic parameter setting
Accuracy	Higher precision	Standard accuracy
Production Efficiency	Suitable for repeated production	Suitable for standard jobs
Operation	More automated	Easier operation
Application	Complex parts and mass production	General sheet metal bending

CNC Series with Step/Servo Motor

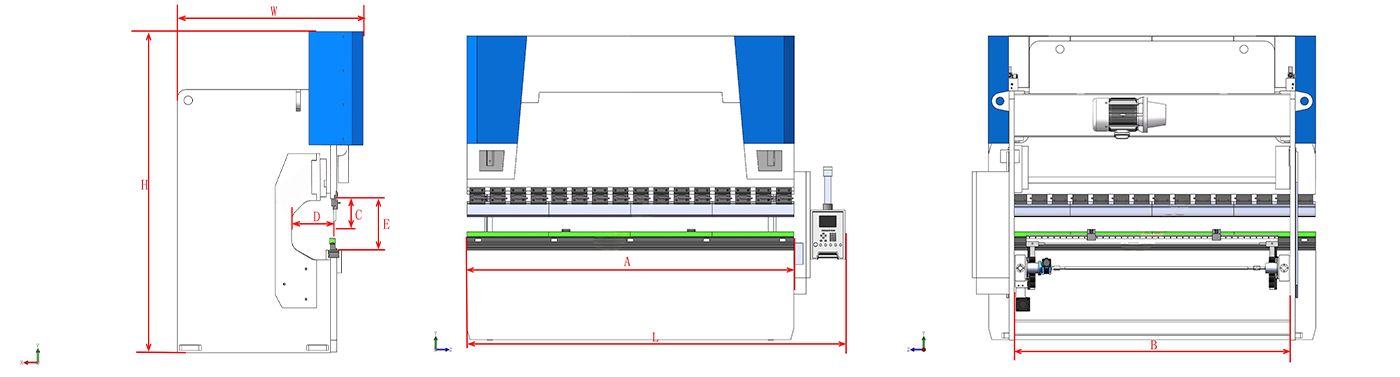

Model	Bending Force	Bending Length	Aprroaching Speed	Returm Speed	Column Distance	Throat Depth	Stroke	Daylight	Motor Power	Weight	Dimensions
Unit	KN	mm	mm/S	mm/S	mm	mm	mm	mm	KW	Ton	LWH mm
40T1300	400	1300	160	160	1100	250	150	440	4.0	3.5	170015002200
40T1600	400	1600	160	160	1300	250	150	440	4.0	4	200015002200
63T1600	630	1600	160	160	1300	300	150	440	5.5	4.8	200015502250
63T2500	630	2500	160	160	2050	300	150	440	5.5	5.5	290015502250
80T/1600	800	1600	220	160	1300	300	150	460	7.5	5.9	200016002500
80T/2500	800	2500	220	160	2050	300	150	460	7.5	6.5	290016002500
110T/2500	1100	2500	220	160	2050	400	200	480	11.0	7.5	310018002750
110T/3200	1100	3200	220	160	2700	400	200	480	11.0	8.5	380018002750
110T/4000	1100	4000	220	160	3100	400	200	480	11.0	10.0	460018002750
135T2500	1350	2500	220	130	2050	400	200	480	11.0	8.5	310018002750
135T/3200	1350	3200	220	130	2700	400	200	480	11.0	9.5	380018002750
135T/4000	1350	4000	220	130	3100	400	200	480	11.0	11.0	460018002750
170T/2500	1700	2500	200	120	2050	450	200	480	15.0	10.4	310020002800
170T/3200	1700	3200	200	120	2700	450	200	480	15.0	11.5	380020002800
170T/4000	1700	4000	200	120	3100	450	200	480	15.0	13.0	460020002800
170T5000	1700	5000	200	120	3900	450	200	480	18.5	15.0	560021002950
170T6000	1700	6000	200	120	4900	450	200	480	18.5	18.0	660022002950
220T/2500	2200	3200	200	120	2600	450	200	480	18.5	11.2	380022002850
220T/3200	2200	3200	200	120	2600	450	200	480	18.5	13.5	380022002850
220T/4000	2200	4000	200	120	3100	450	200	480	18.5	15.5	460022002850
220T/5000	2200	5000	200	120	3800	450	200	480	22.0	18	560022503050
220T6000	1700	6000	160	120	4800	450	200	480	22.0	21	660022503050
250T/2500	2500	2500	100	100	2000	450	250	540	22.0	14	310022503000
250T/3200	2500	3200	100	100	2600	450	250	540	22.0	15.5	380022503000
250T/4000	2500	4000	100	100	3100	450	250	540	22.0	17.8	460022503000
250T/5000	2500	5000	100	100	3800	450	250	540	22.0	21.3	560022503150
250T/6000	2500	6000	100	100	4800	450	250	540	22.0	25	660022503150
300T/3200	3000	3200	80	110	2600	500	250	570	22.0	18.8	360022503200
300T/4000	3000	4000	80	110	3100	500	250	570	22.0	20.3	460022503200
300T/5000	3000	5000	80	110	3800	500	250	570	30.0	27	560022503400
300T/6000	3000	6000	80	110	4800	500	250	570	30.0	30.4	660022503400
400T/3200	4000	3200	80	80	2400	500	300	610	30.0	22.8	360022503500
400T/4000	4000	4000	80	80	3100	500	300	610	30.0	28.3	460022503500
400T/5000	4000	5000	80	80	3800	500	300	610	37.0	31.2	560022503500
400T/6000	4000	6000	80	80	4800	500	300	610	37.0	37.4	660022503500
400T/8000	4000	6000	80	80	6400	500	300	610	37.0	52.8	860027003500
500T/4000	5000	4000	80	90	3100	500	300	610	37.0	35	430027003500
500T/5000	5000	5000	80	90	3800	500	300	610	45.0	39.8	530027003500
500T/6000	5000	6000	80	90	4800	500	300	610	45.0	45.8	630027003600
600T/3200	6000	3200	80	85	2300	600	320	650	45.0	45	430033003900
600T/4000	6000	4000	80	85	3100	600	320	650	45.0	45.8	430033003900
600T/5000	6000	5000	80	85	3800	600	320	650	45.0	50.3	530033003900
600T/6000	6000	6000	80	85	4800	600	320	650	45.0	56.8	630033003900
600T/7000	6000	7000	80	85	5600	600	320	650	45.0	66.8	730033003900
700T/6000	7000	6000	80	90	4900	600	320	700	55.0	66.8	630035004000
800T/6000	8000	6000	80	90	4600	600	320	800	30*2	76.8	630035004000
800T/7000	8000	7000	80	90	5600	600	320	800	30*2	89.0	730035004200
800T/8000	8000	8000	80	90	6600	600	320	800	30*2	103.0	830036004500
800T/10000	8000	10000	80	90	7800	600	320	800	30*2	130.0	1030036004900

The controllers are sourced from European countries—Delem from the Netherlands, ESA from Italy, and Cybelec from Switzerland—ensuring quality and reliability.
Algorithms are advanced enough to optimize bending cycles and decrease setup times, thus boosting productivity, especially during batch processing tasks.
(Options: DELEM DA53T, DA58T, DA66T, DA69T, ESA s630 ,CYBELECK CT12,CT15 etc.)
