Single Table Fiber Laser Cutting Machine

The Single Table Fiber Laser Cutting Machine is a cost-effective and compact sheet metal cutting solution designed with one working platform. It provides high-precision fiber laser cutting performance while keeping the equipment structure simple, stable, and easy to maintain.

Compared with dual exchange table laser cutters, a single platform system is ideal for small and medium-sized workshops that require:

high-quality cutting,

reduced equipment cost,

and a smaller machine footprint.

This type of machine is widely used in metal fabrication, electrical cabinets, HVAC ducts, machinery parts, advertising signs, and general sheet metal production.

Request a Quote

Single Table Fiber Laser Cutting Machine

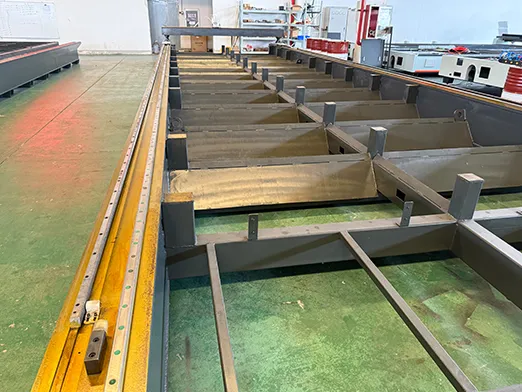

Mechanical Bed

1. High-Rigidity Welded Structure
The bed is made from high-strength steel with integrated welding, stress-relieved by high-temperature annealing. It offers excellent rigidity and vibration resistance, ensuring stable performance during high-speed cutting.
2. Long-Term Precision and Stability
Precision machining guarantees accurate mounting surfaces for key components. The structure remains stable and deformation-free even after years of heavy-duty use—maintaining cutting accuracy for over a decade.
3. Durable Design for Harsh Environments
Optimized by finite element analysis, the bed resists thermal deformation and structural fatigue. It performs reliably in high-power, high-temperature, and dusty industrial settings.

Request a Quote

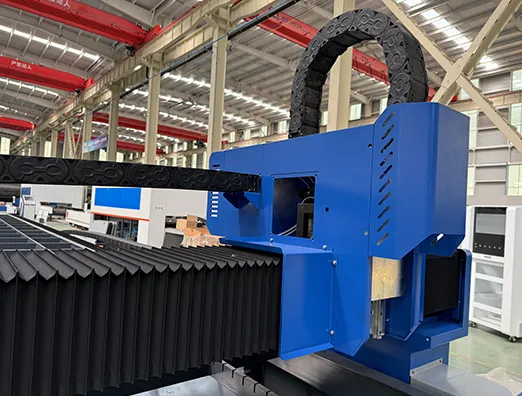

Beam

1. Lightweight design ensures fast acceleration and high cutting speed without sacrificing stability.
2. Rigid structural integrity minimizes deformation, ensuring precise motion during high-speed operation.

Request a Quote

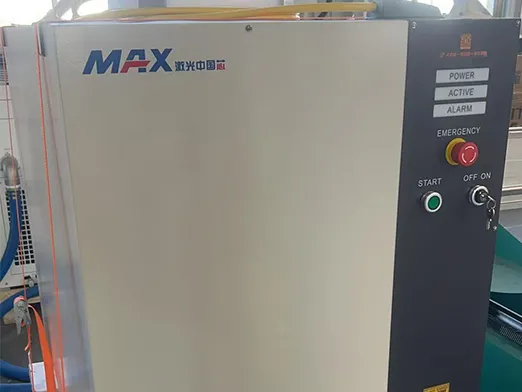

Laser Source

1. Equipped with reliable Chinese laser sources such as Raycus and Max, known for stable performance and cost-effectiveness.
2. Power range from 1000W to 30000W meets diverse cutting needs—from thin sheets to thick plates—with high precision and efficiency.
3. Fiber laser technology offers high electro-optical conversion efficiency, while modular design ensures easy operation and low maintenance.

Request a Quote

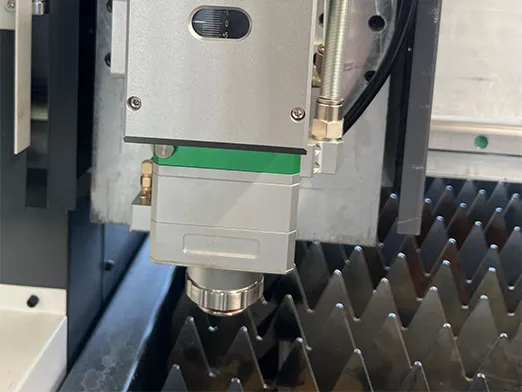

Cutting Head

1. Auto-focusing capability ensures optimal cutting distance for different material thicknesses.
2. High-speed, high-precision optics deliver clean, consistent cuts even at complex contours.
3. Dust-proof and anti-collision design extends lifespan and reduces maintenance costs.

Request a Quote

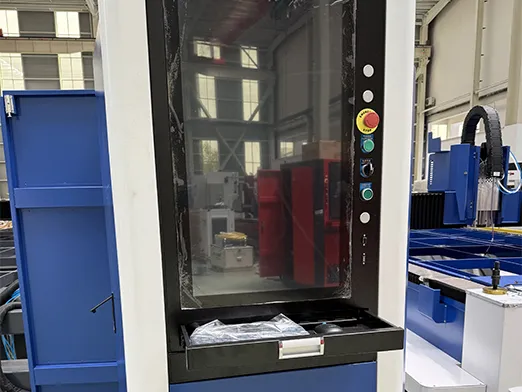

Control System

1. CypCut is a specialized fiber laser cutting software independently developed in China, engineered to maximize the efficiency and precision of fiber laser machines.
2. It features quick installation, intuitive setup, and delivers stable, high-performance operation. The system supports dynamic speed adjustment based on power output, offering greater flexibility in processing.
3. Additionally, CypCut enables separate linear speed settings for imported files and includes a comprehensive cutting process database for enhanced productivity and accuracy.

Request a Quote

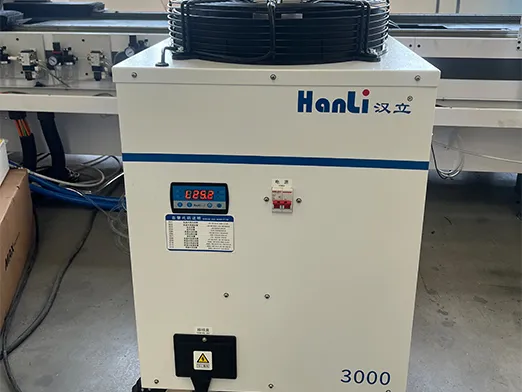

Water Chiller

It includes safety alarms like over-temperature alerts, flow detection, water level monitoring, and various other protective notifications.

Request a Quote

Technical Specifications

Working Table	1500×3000mm / 2000×4000mm / Custom
Laser Power Options	1kW–6kW
Max Cutting Thickness	Based on power selection
Laser Source	Raycus / IPG / MAX
Position Accuracy	±0.02mm
Repeat Position Accuracy	±0.01mm
Cooling System	Industrial water chiller
Control Software	CNC system + nesting software

Key Features of Single Table Fiber Laser Cutting Machine

Integrated Precision – Single-platform laser machines combine cutting and processing in one unit, ensuring high accuracy and consistent results.
Improved Efficiency – Streamlined workflow reduces setup time and simplifies operation, boosting overall productivity.
Space-Saving Design – Compact, all-in-one structure saves factory floor space and reduces equipment costs.

High-Precision Fiber Laser Cutting

Advanced fiber laser source (Raycus / IPG / MAX)

Smooth and clean cutting edges

Excellent stability and repeatability

Suitable for stainless steel, carbon steel, aluminum, brass, and alloy sheets

Compact Single Table Design

One working table for loading and cutting

Simple structure with fewer moving parts

Lower cost compared with dual-exchange models

Ideal for entry-level or mid-range metal processing

Automatic Focusing Laser Head

Smart focusing

Wide cutting range

Fast piercing and stable high-speed cutting

Compatible with various material thicknesses

Intelligent CNC Control System

User-friendly interface

Advanced nesting software for optimal material utilization

Real-time monitoring

Supports common CAD file formats

Heavy-Duty Machine Structure

Thick welded bed ensures rigidity

Long-term accuracy without deformation

Servo-driven system for smooth movement

Automatic lubrication and smoke extraction systems

Feature	Single Table	Dual Exchange Table
Cost	Lower	Higher
Cutting Efficiency	Moderate	Higher
Maintenance	Easier	More complex
Footprint	Smaller	Larger
Best For	Small/medium workshops	Large-scale production

Upgrade Solutions

If you need to purchase separate accessories or services to renovate the machine, you can learn more through the link below.

Related Products

Double Table Fiber Laser Cutting Machine

The laser machine with an exchange table maximizes productivity by enabling continuous loading and unloading, minimizing downtime and boosting operational efficiency. Model: BTD
Laser Power: 1KW - 20KW
Processing Area: 3000*1500~24000*3200mm

Dual-use Fiber Laser Cutting Machine

The combined sheet and tube laser machine provides versatile, high-precision cutting for both flat plates and tubes in one setup, greatly enhancing efficiency and space utilization.

Model: BTDU
Laser Power: 500 - 6kW
Tube Diameter: 20-320mm

Tube Laser Cutting Machine

The laser tube cutting machine delivers precise, efficient, and clean cuts with minimal material waste, ideal for complex tube fabrication.

Model: BTT
Laser Power: 1kW - 60kW
Tube Diameter: 20-320mm

Ground-Rail Laser Cutting Machine

The ground-rail laser cutting machine offers stable, high-precision cutting with smooth motion and large processing capacity, ideal for heavy-duty and large-format materials.

Model: BTG
Laser Power: 500 - 6kW
Tube Diameter: 20-320mm
