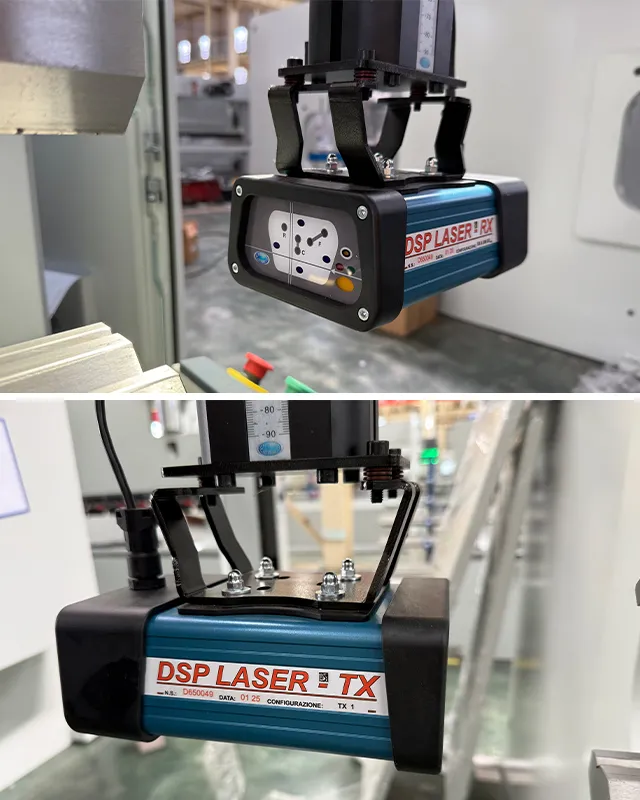

The Italy DSP Laser Protection system is a state-of-the-art safety solution designed for hydraulic press brakes, ensuring operator protection without compromising productivity.

Advanced Laser Safety: Utilizes a visible Class 1M laser beam to create a protective zone, safeguarding operators from potential hazards between the upper and lower tools.

High Safety Standards: Complies with EN12622 regulations, achieving Safety Category 4 and SIL3 levels, ensuring top-tier safety performance.

Rapid Response Time: Features a swift response time of 5 milliseconds, promptly halting machine operation upon detecting obstructions.

Optimized Bending Efficiency: Reduces the mute point (speed change point) to as low as 4 mm from the sheet metal, enhancing cycle times by approximately 1.2 seconds per bend.

Adaptive Functionality: Equipped with automatic blanking for the recognition of boxes and profiles with side walls, and supports CNC-controlled motorized positioning for optimal alignment based on tools and working conditions.

Protective Areas: Front, center, and rear zones.

Protection Distance: Up to 15 meters.

Detection Case Protection: Rated at IP65, ensuring durability in various environments.

Operating Temperature: 0°C to 50°C.

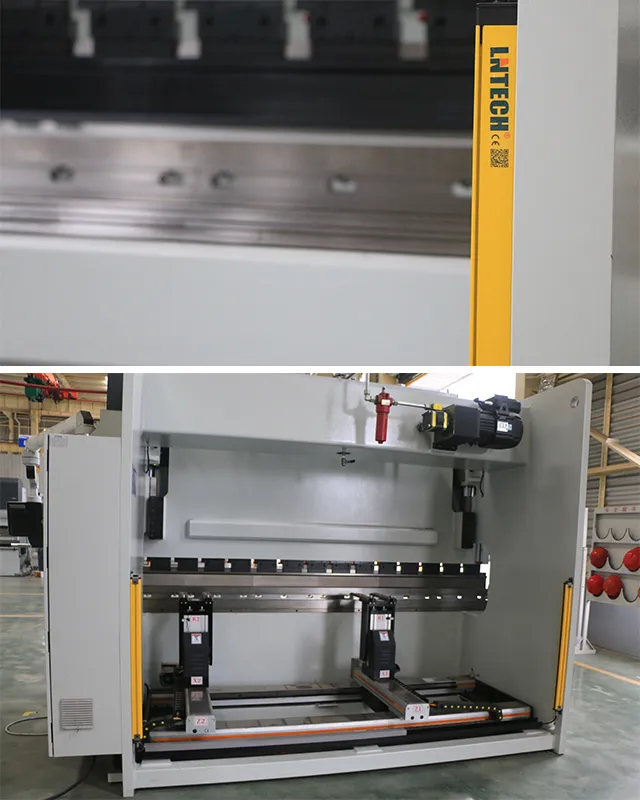

Mounting: Installed on the upper beam of the press brake.

LED Indicators: Provide real-time status updates for easy monitoring.

The Italy DSP Laser Protection system represents a significant advancement in press brake safety technology, combining rigorous safety standards with features that enhance operational efficiency. Its integration into press brake systems ensures both the protection of operators and the optimization of bending processes.
