Laser Check Angle Measurement System
In partnership with Data-M Engineering, the iMeasure Laser angle measurement system offers precise bend angle measurement after a single bending operation. These fully-automatic laser-assisted systems are tailored for use with CNC press brakes. With the LaserCheck feature, they can accurately determine the bending angle with better than 0.1° accuracy, regardless of the material's properties or thickness. This level of precision was previously unavailable in the industry.
Variable working distance
Die width up to 60 mm without adjustment
Automatic height compensation
Fast image transfer via GigE
S-Mount lenses (low distortion / fixed focus / fixed aperture)
Measurement range 0° - 180°
Advanced:

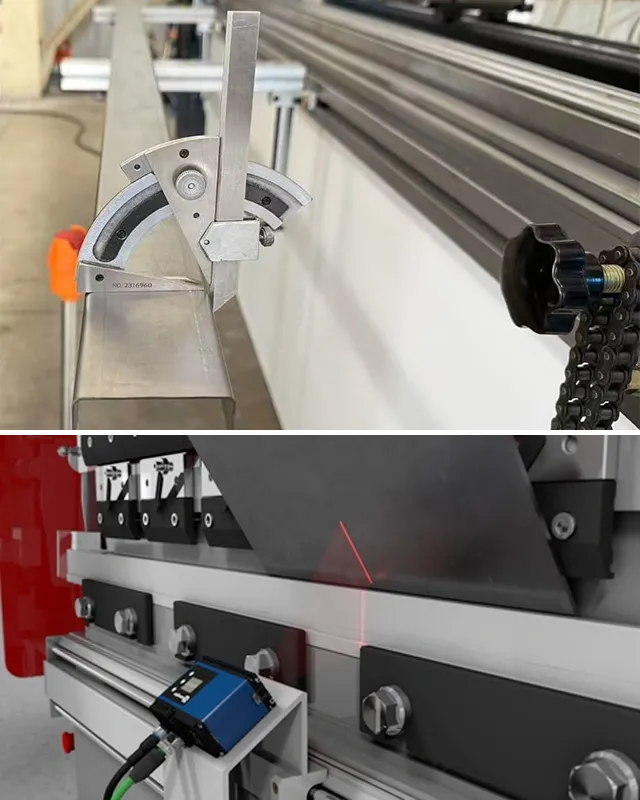

A laser beam is projected on the sheet metal surface
The camera detects the laser beam
The angle between the beam and the camera axis determines the bend angle.
Force reduction + calculation of the springback
Automatic angle correction
![]()
